| Model | SPESS-3000B | SPESS-5000B |
| Rated Voltage | 51.2V | 51.2V |
| Operating Voltage | 40-58.4V | 40-58.4V |
| Rated Capacity | 60 Ah | 100 Ah |
| Energy | 3.0KWh | 5.0KWh |
| Max. Continuous Charge Current | 60A | 100A |
| Max. Continuous Discharge Current | 80A | 120A |
| Charging temperature range | 0-45℃ | 0-45℃ |
| Discharge temperature range | -10-60℃ | -10-60℃ |
| Approx. Dimension L*W*H | 793.7mm*562mm*138mm | |
| Approx. Weight | 48kg | |
| Life | 10 Years | |
| Installation form | Wall-mounted | |
| Battery BMS protection function |
Overcharge/overdischarge/overtemperature/ overcurrent/short circuit |
Overcharge/overdischarge/overtemperature/ overcurrent/short circuit |
| Power charging | ||
| Cycles(80%DOD 25℃) |
(170Vac~280Vac)±2% (90Vac~280Vac)±2% |
|
| Solar panel input voltage |
Voltage ≤145V, current ≤60A, maximum power 4200W |
|
| AC output parameters | ||
| Output voltage | AC220V | AC220V |
| Maximum output power | Two output ports total: 3000W | Two output ports total: 5000W |
| Peak output power | 6000W/5S | 10000W/5S |
| Wave type | Sine wave | Sine wave |
| Frequency | 50Hz | 50Hz |
| Efficient | >95% | |
| LCD | ||
| Display size | 41*13mm | |
| Working power consumption | MAX8mA | |
| Standby power consumption | MAX0.5mA | |
| Sleep power consumption | MAX50uA | |
Products

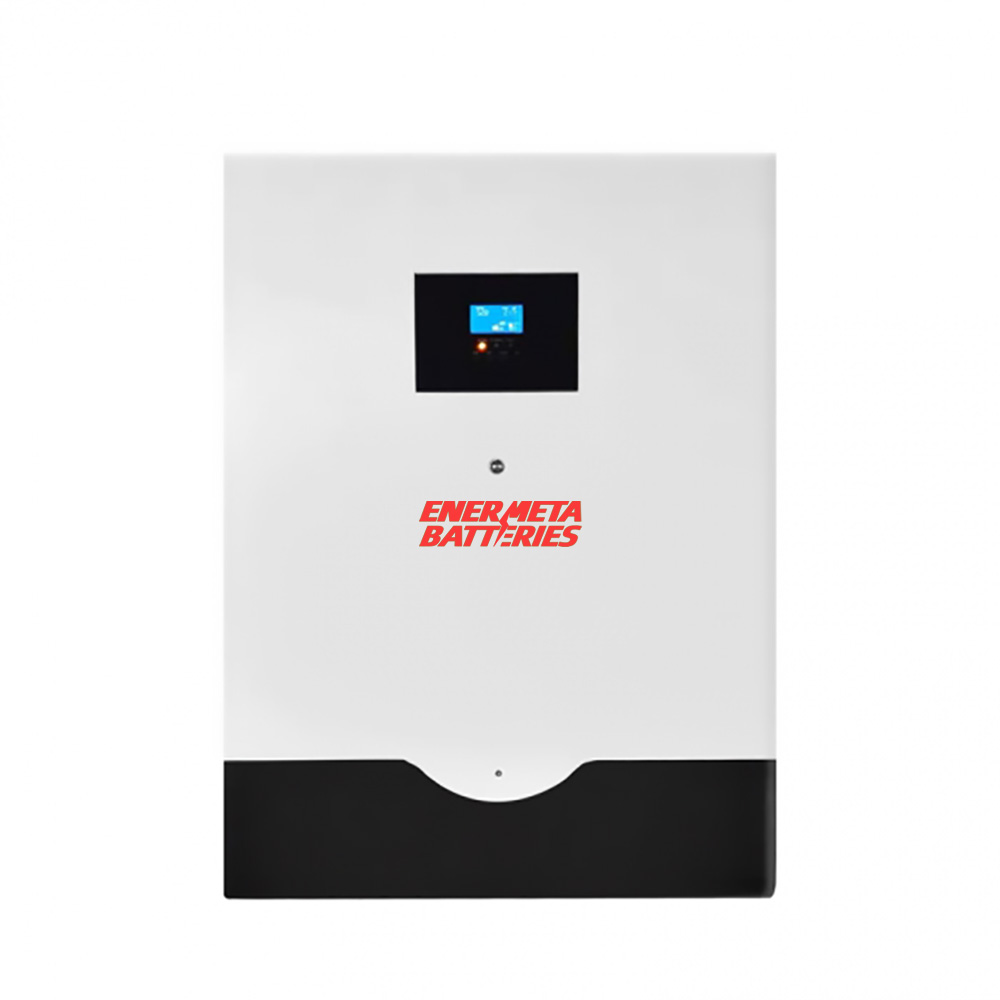

Smart Home Energy Storage SystemBack
Product Description
• Fast Charge & Discharge Rates
• International standard 48V system.
• USB/RS485/Wi-Fi/GRS(option)
• 98% Efficiency Rate
• Perfect protection function of BMS
• Modular, Scalable & Proven Performance
• Long pfe cycle, >6000 times at 80% DOD
• Easy to install
• Environmental friendly
• Perfect thermal design
