12V Hybrid Gel BatteryBack

Product Description

Hybrid Gel Series with 10+years design life, it is ideal for frequent cyclic discharge applications under high temperature environment. By using corrosion-resistance grids, high purity lead, advanced AGM separator and unique Gel electrolyte, the Hybrid Gel Series offers excellent recovery after deep discharge under frequent cyclic discharge and high temperature. Suitable for solar and other renewable energy systems,CATV, marine, RV and deep discharge UPS etc.

  • Product Details
Model

Rated Voltage

(V)

Capacity
(Ah)

Dimension
(mm)
Terminal
Length Width Height

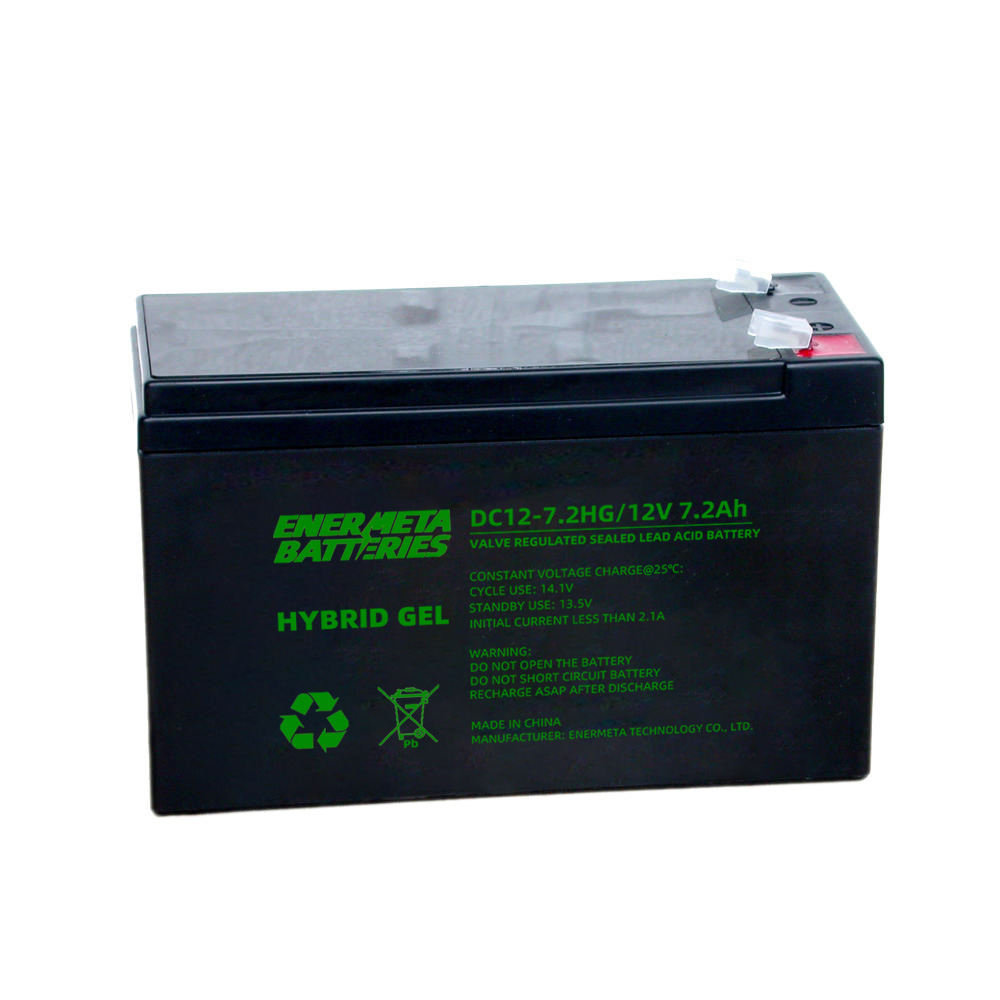

DC12-7.2HG 12 7.2 151 65 94/100 187/250

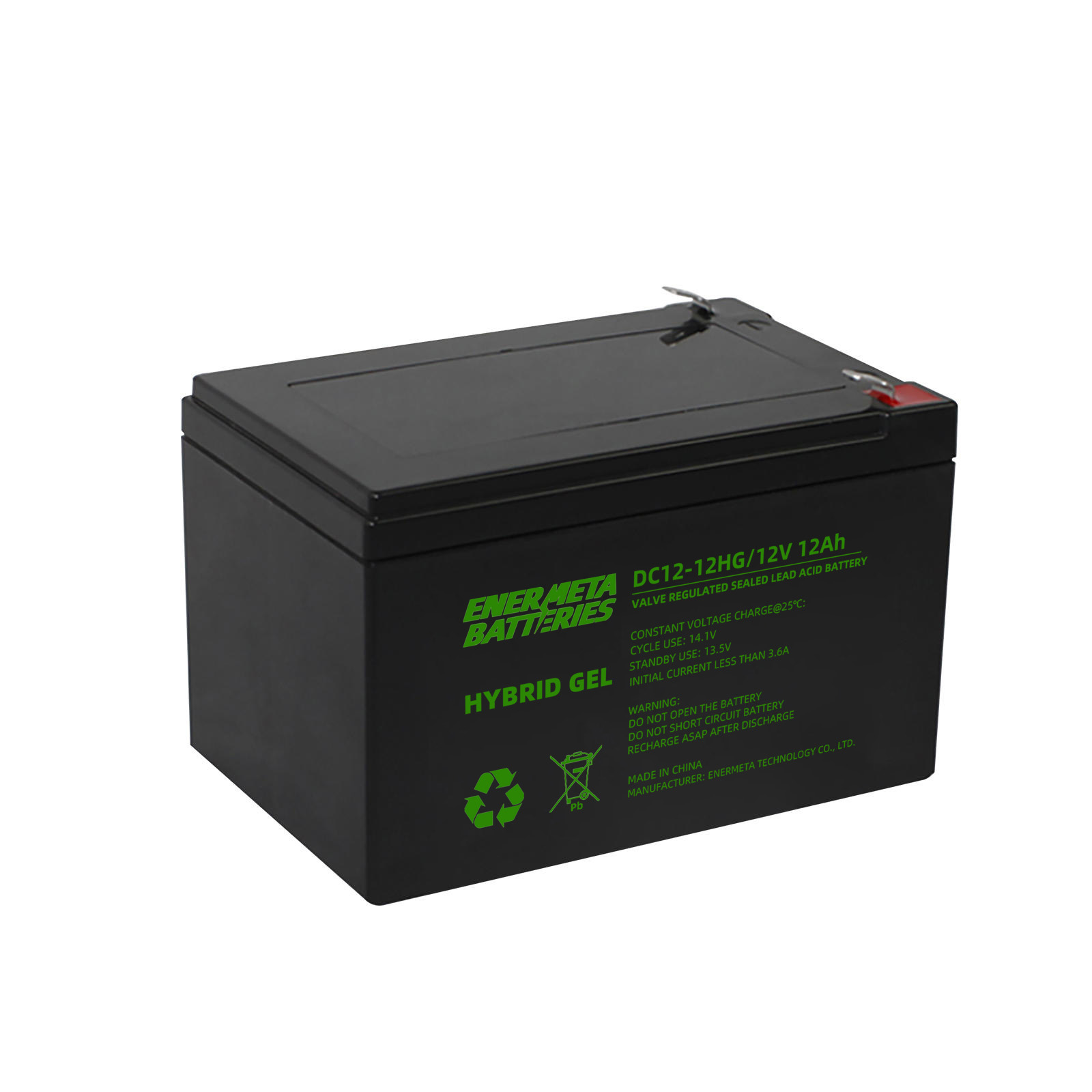

DC12-12HG 12 12 151 98 95/101 250

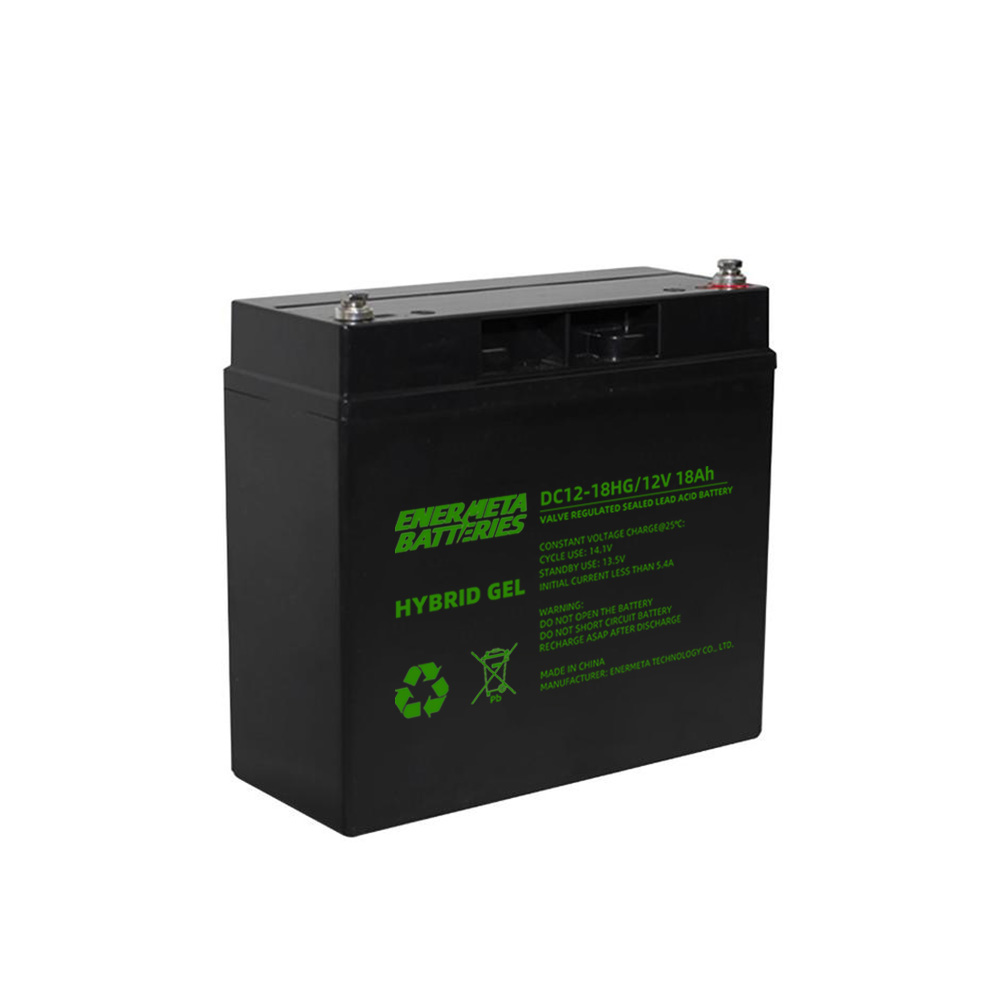

DC12-18HG 12 18 181 77 167 M5
DC12-35HG 12 35 195 130 155/166 M6
DC12-50HG 12 50 229 138 208 M6

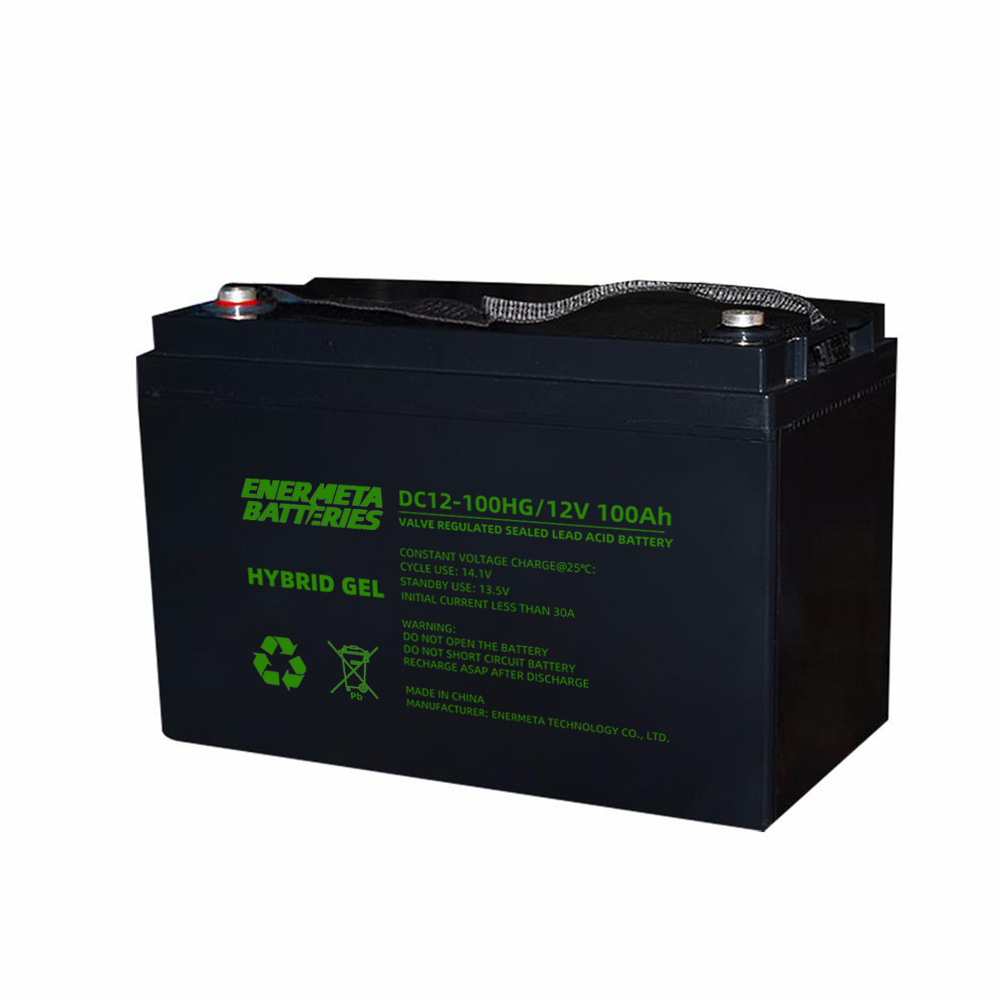

DC12-100HG 12 100 330 171 214/220 M6

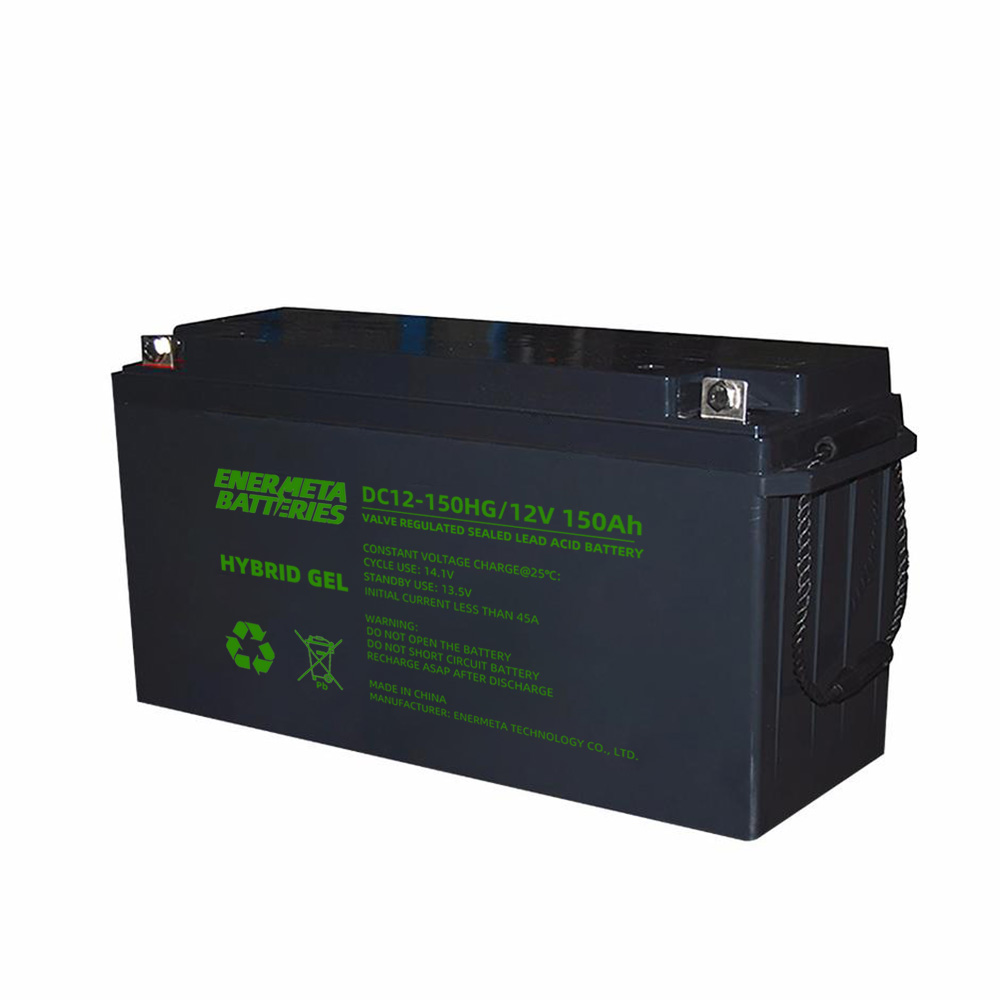

DC12-150HG 12 150 485 172 240 M8

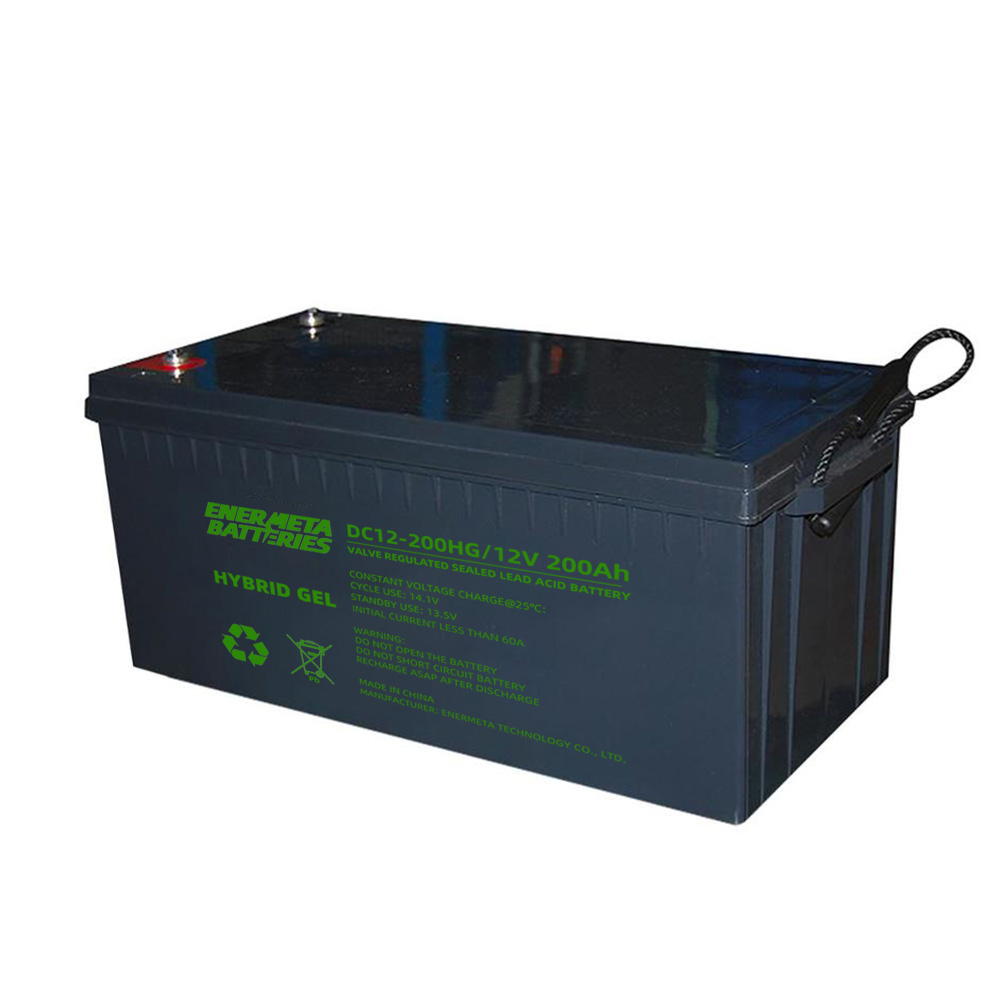

DC12-200HG 12 200 522 238 218/221 M8


*Technical specifications mentioned above are subjected to be updated from time to time. Please consult with our sales representatives for latest technical information.
